QuantWeightBlockInv_DV100

Performs inverse quantization and inverse weighting on a block according to DV100 standard.

Syntax

IppStatus ippiQuantWeightBlockInv_DV100_16s_C1I(Ipp16s* pSrcDst, const Ipp16s* pWeightInvTable, Ipp32s quantValue);

Parameters

pSrcDst

Pointer to the source and destination 8x8 block.

pWeightInvTable

Pointer to an array that contains values of weight table for the current block.

quantValue

Quantification step for the current block.

Note iconNote

This standard deals with only one block type - 8x8 block.

Description

This function is declared in the ippvc.h header file. The function ippiQuantWeightBlockInv_DV100_16s_C1I performs inverse quantization and inverse weighting on a block in accordance with SMPTE 370M-2006 (DV100) [SMPTE370M-06] standard.

See "DV100 One Block Decoding" for the DV100 frame decoding process.

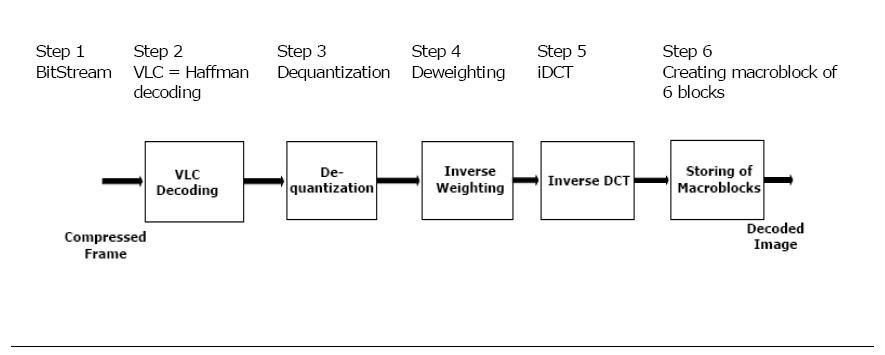

DV100 One Block Decoding



Step 1 passes the pointer to the required stream. Step 2 is segment decoding. The HuffmanDecodeSegment_DV (...) function decodes the block along with multiplying its elements by 64, that is, performs <<6 shift. The ippiQuantWeightBlockInv_DV100_16s_C1I(...) function combines Steps 3 and 4. Choose appropriate quantization and weighting tables, that is, dequantization and deweighting tables for decoding. To choose the quantization table, use the values of two parameters - QNO (quantization number) and the appropriate block quant class number (see Example "ippiQuantWeightBlockInv_DV100_16s_C1I Usage" ). For details, see [SMPTE370M-06], Table 25 - Quantization step.

The ippiQuantWeightBlockInv_DV100_16s_C1I(...) function uses the following three pointers as input arguments:

pDataBlock

Pointer to the current block

quantValue

Quantification step for the current block

pWeightTable

Pointer to the weighting table

The function performs the following operations:

The function performs the following operations:

for (Ipp32s i = 0;i < 64; i+= 1) pDataBlock[i] = (Ipp16s) ( ( pDataBlock[i]* pWeightTable[i] ) ) * quantValue )>>11 );

After ippiQuantWeightBlockInv_DV100_16s_C1I(...) completes Steps 3 and 4, Step 5 of iDCT is performed before Step 6.

See Example "ippiQuantWeightBlockInv_DV100_16s_C1I Usage".

ippiQuantWeightBlockInv_DV100_16s_C1I Usage

{

//For more details see SMPTE 370M-2002 standard.
//You can similarly get tables LumaQuantizeMatrix_720System
//and ChromaQuantizeMatrix_720System.
const Ipp32s LumaQuantizeMatrix_1080System[64] =
{
    128,  16,  17,  18,  18,  19,  42,  44,
     16,  17,  18,  18,  19,  38,  43,  45,
     17,  18,  19,  19,  40,  41,  45,  48,
     18,  18,  19,  40,  41,  42,  46,  49,
     18,  19,  40,  41,  42,  43,  48, 101,
     19,  38,  41,  42,  43,  44,  98, 104,
     42,  43,  45,  46,  48,  98, 109, 116,
     44,  45,  48,  49, 101, 104, 116, 123
};

const Ipp32s ChromaQuantizeMatrix_1080System[64]=
{

    128,  16,  17,  25,  26,  26,  42,  44,
     16,  17,  25,  25,  26,  38,  43,  91,
     17,  25,  26,  27,  40,  41,  91,  96,
     25,  25,  27,  40,  41,  84,  93, 197,
     26,  26,  40,  41,  84,  86, 191, 203,
     26,  38,  41,  84,  86, 177, 197, 209,
     42,  43,  91,  93, 191, 197, 219, 232,
     44,  91,  96, 197, 203, 209, 232, 246
};

//For more details see SMPTE 370M-2002 standard
static const Ipp32s QuantizationSteps[] =
{
     //Class Number
     //0     1     2     3   //Quantization Number (QNO)
       0,    0,    0,    0,  //  0
       1,    2,    4,    8,  //  1
       2,    4,    8,    0,  //  2
       3,    6,   12,    0,  //  3
       4,    8,    0,    0,  //  4
       5,   10,    0,    0,  //  5
       6,   12,    0,    0,  //  6
       7,   14,    0,    0,  //  7
       8,    0,    0,    0,  //  8
      16,   32,   64,    0,  //  9
      18,   36,   72,    0,  // 10
      20,   40,   80,    0,  // 11
      22,   44,   88,    0,  // 12
      24,   48,   96,    0,  // 13
      28,   56,  112,    0,  // 14
      52,  104,    0,    0   // 15
};

/*
.....
Before quantization and weighting, you should perform Huffman decoding
.....
*/
    //nMBNum - number of the current macroblock
    int nMBNum;
    //curent DCT block in macroblock
    int nDCTBlockNum;
    //array of BlockParam for each block from 5 macroblock (8 * 5 = 40)
    BlockParam BlParam[40];
    //Pointer to current DCT block in macroblock
    Ipp16s* pCurrDCTBlock;

    for(nMBNum = 0; nMBNum < 5; nMBNum++)
    {
        Ipp8u QNO = BlParam[nMBNum * 8].qno;

        for(nDCTBlockNum = 0; nDCTBlockNum < 8; nDCTBlockNum++)
        {
            Ipp8u ClassNumber = BlParam[nMBNum *  8 + nDCTBlockNum].cl;
            Ipp32s QuantStep = QuantizationSteps[QNO*4 + ClassNumber];
            const Ipp16s* pQuantizeTable;

            //Dequantize block
            //Select quantization table that depends on system type and type
            //of block (luma or chroma)
            if(m_System == System720_60p)
                pQuantizeTable = (nDCTBlockNum < 4) ?
                LumaQuantizeMatrix_720System : ChromaQuantizeMatrix_720System;
            else
                pQuantizeTable = (nDCTBlockNum < 4) ?
                LumaQuantizeMatrix_1080System : ChromaQuantizeMatrix_1080System;

            //Do quantization and weighting
            //For more performance you should align pCurrDCTBlock and
            //pQuantizeTable pointers on a 16-byte boundary.
            ippiQuantWeightBlockInv_DV100_16s_C1I(pCurrDCTBlock, (Ipp16s
                                                  * )pQuantizeTable, QuantStep);
            //Do inverse DCT
            ippiDCT8x8Inv_16s_C1I(pCurrDCTBlock);

            pCurrDCTBlock += 64;
        }//for nDCTBlockNum = 0 to 7
    }
};

Return Values

ippStsNoErr

Indicates no error.

ippStsNullPtrErr

Indicates an error when the pSrcDst pointer is NULL.
