HuffmanDecodeSegment_DV

Decodes and rearranges segment block, multiplies first block element by 128.

Syntax

IppStatus ippiHuffmanDecodeSegment_DV_8u16s(const Ipp8u* pStream, const Ipp32u* pZigzagTables, const Ipp32u* pHuffTable, Ipp16s* pBlock, Ipp32u* pBlockParam);

Parameters

pStream

Pointer to bitstream (compressed segment).

pZigzagTables

Pointer to the array of two scanning matrices.

pHuffTable

Pointer to the decoding Huffman table.

pBlock

Pointer to decoded elements.

pBlockParam

Pointer to output parameters array [30].

Description

This function is declared in the ippvc.h header file. The function ippiHuffmanDecodeSegment_DV_8u16s decodes and rearranges segment, multiplies the first block element by 128.

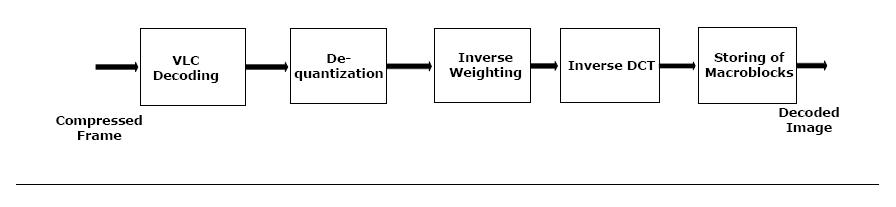

The figure below depicts the DV frame decoding process.

DV Frame Decoding



At the first step, ippiHuffmanDecodeSegment_DV_8u16s function decodes the compressed frame. The output of the function is 6 decompressed macro blocks, which are then de-quantized, de-weighted, processed by inverse DCT, and stored to the appropriate places of the destination image.

AC coefficients are decoded using Variable Length Codes with the help of the destination decoding table created by InitAllocHuffmanTable_DV. The pointer to this table is passed to the ippiHuffmanDecodeSegment_DV function through the pHuffTable pointer. The table contains level values multiplied by 64, and the ippiHuffmanDecodeSegment_DV function also multiplies output values of AC coefficients by 64.

DC coefficients are obtained from the first 2 bytes of the compressed blocks (see "Arrangement of Y compressed blocks cbY0, cbY1, cbY2, cbY3" and "Arrangement of Cr compressed blocks cbU, cbV") with zeroing of the last 7 bits. The output values of DC coefficients are multiplied by 128 (shift left by 7).

The pointer pStream points to a compressed segment, which is a sequence of 5 compressed macroblocks. Each compressed macroblock occupies 80 bytes of data, hence the total length of the compressed video segment is 400 bytes.

The pZigzagTables pointer refers to two scanning matrices which are used to de-zigzag AC coefficients.

Scanning_matrix = pZigzagTables, if the block is of type 1(m0 = 0). Scanning_matrix = pZigzagTables + 64, if the block is of type 2 (m0 = 1).

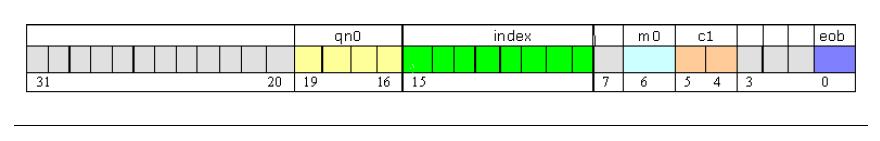

The argument *pBlockParam ("BlockParam Structure") stores values m0 (block type), cl (class number), index (index of the last decoded element), and eob (end of block indicator) for every block.

Value qn0 (quantization number) is obtained from the first block of the macroblock. The same value qn0 is used for all blocks of the macroblock.

With 64 elements in an 8x8 block, if only the DC coefficient (that is, the first block element) is decoded, index=0. If all the elements are decoded, index=63.

eob=1 (“true”), if the symbol of the block end EOB is present in the block, otherwise eob=0 (“false”).

See Example HuffmanDecodeSegment_DV Usage” and Example HuffmanDecodeSegment_DV Usage with index and eob values .

BlockParam Structure



HuffmanDecodeSegment_DV Usage

Ipp32u DeZigzagTables[] =
{
    0,
    1,

    8,          16, 9,  2,                  3, 10,  17,
    24,         32,         25,             18,          11,
    4,          5,              12,         19,              26,
    33,         40,             48,         41,              34,
    27,         20,             13,         6,               7,
    14,         21,             28,         35,              42,
    49,         56,         57,             50,          43,
    36,         29, 22, 15,                 23, 30, 37,
    44,         51,                         58,
    59,         52,                         45,
    38,         31,                         39,
    46,         53,                         60,
    61,         54,                         47,
    55,         62,                         63,

    0,  32,  1, 33,  8, 40,  2, 34,
    9,  41, 16, 48, 24, 56, 17, 49,
    10, 42,  3, 35,  4, 36, 11, 43,
    18, 50, 25, 57, 26, 58, 19, 51,
    12, 44,  5, 37,  6, 38, 13, 45,
    20, 52, 27, 59, 28, 60, 21, 53,
    14, 46,  7, 39, 15, 47, 22, 54,
     29, 61, 30, 62, 23, 55, 31, 63
};

{
    /* Create Huffman Decoding table*/
    ippiInitAllocHuffmanTable_DV_32u( ..., ..., &pHuffTable);

    ...

    /* Huffman Decode video segment

       pEncodedVideoSegment - (Ipp8u*) pointer to compresses video segment
       DeZigzagTables       - (Ipp32u*) pointer to array of two de-zigzag tables
       pHuffTable         - (Ipp32u*) pointer to Huffman decoding table created
                                 by the ippiInitAllocHuffmanTable_DV_32u function
       lpsDecodedBlocks     - (Ipp16s*) pointer to 30 decoded DCT blocks (5 macro
                                          blocks of 6 DCT blocks)
       BlockParamBuffer     - (Ipp32u*) pointer to array of 30 unsigned double
                                      words, containing DC, m0 and cl values for
                                        DCT blocks
      */
      ippiHuffmanDecodeSegment_DV_8u16s(pEncodedVideoSegment,
                                        DeZigzagTables,
                                        pHuffTable,
                                        lpsDecodedBlocks,
                                        BlockParamBuffer);
}

HuffmanDecodeSegment_DV Usage with index and eob values

void test_huff2(void)
{
/* Create Huffman Decoding table*/
ippiInitAllocHuffmanTable_DV_32u( ..., ..., &pHuffTable);
...
/* Huffman Decode video segment
pEncodedVideoSegment - (Ipp8u*) pointer to compresses video segment
DeZigzagTables - (Ipp32u*) pointer to array of two de-zigzag tables
pHuffTable - (Ipp32u*) pointer to Huffman decoding table created
by the ippiInitAllocHuffmanTable_DV_32u function
lpsDecodedBlocks - (Ipp16s*) pointer to 30 decoded DCT blocks (5 macro
blocks of 6 DCT blocks)
BlockParamBuffer - (Ipp32u*) pointer to array of 30 unsigned double
words, containing DC, m0 and cl values for
DCT blocks
*/
ippiHuffmanDecodeSegment_DV_8u16s(pEncodedVideoSegment,
                                  DeZigzagTables,
                                  pHuffTable,
                                  lpsDecodedBlocks,
                                  BlockParamBuffer);
for (mb_num = 0;mb_num < 5;mb_num++)
{
    // get quantization number
    qno = (BlParamBuffer[mb_num * 6] >> 16) & 0x0F;

    // decompress each block
    for (b_num = 0;b_num < 6;b_num++)
    {
        block_type = (BlParamBuffer[mb_num * 6 + b_num] >> 6) & 0x01;
        bl_index = (BlParamBuffer[mb_num * 6 + b_num] >> 8) & 0xff;
        eob = BlParamBuffer[mb_num * 6 + b_num]  & 0x01;

        // do inverse and adaptive dequantization
        ippiQuantInv_DV_16s_C1I(lpsDecodedBlocks,...);

        // do iDCT
        if (0 == block_type)
        {
            if ((eob == 0)||( 10 > bl_index))
                ippiDCT8x8Inv_4x4_16s_C1I((Ipp16s *) (lpsDecodedBlocks));
            else
                ippiDCT8x8Inv_16s_C1I((Ipp16s *) (lpsDecodedBlocks));
        }
        else
        {
            ippiDCT2x4x8Inv_16s_C1I((Ipp16s *) (lpsDecodedBlocks));
        }
    }
}

}

This function is used in the DV decoder included into Intel IPP Samples. See introduction to DV.

Return Values

ippStsNoErr

Indicates no error.

ippStsNullPtrErr

Indicates an error when at least one input pointer is NULL.
