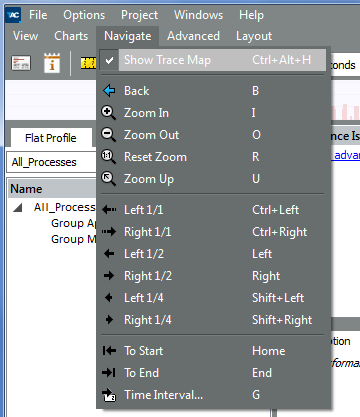

All navigation options are also available through keyboard shortcuts. These keyboard shortcuts work only when a timeline has the keyboard focus. Left-click on a timeline to give it keyboard focus. A black rectangle around the timeline indicates it has the keyboard focus.
| Navigation: | Keyboard Shortcut: | Description: |
|---|---|---|
| Show Trace Map | Ctrl+Alt+H |
Enable/disable the Trace Map |
| Back | B |
Display the current interval from the zoom stack. |
| Zoom In | I |
Scale in by a factor of 0.5 around the current center and push this new interval onto the zoom stack. |
| Zoom Out | O |
Scale out by a factor of 0.5 around the current center and push this new interval onto the zoom stack. |
| Reset Zoom | R |
Clear the zoom stack and push a time interval corresponding to the complete trace file onto the zoom stack. |
| Zoom Up | U |
Maintain the current center and go back to the previous zoom step. |
| Left 1/1 | Ctrl+Left |
Move one whole screen to the left and push the new interval onto the zoom stack. |
| Right 1/1 | Ctrl+Right | Move one whole screen to the right and push the new interval onto the zoom stack. |
| Left 1/2 | Left |
Move half a screen to the left and push the new interval onto the zoom stack. |
| Right 1/2 | Right |
Move half a screen to the right and push the new interval onto the zoom stack. |
| Left 1/4 | Shift+Left |
Move a quarter of a screen to the left and push the new interval onto the zoom stack. |
| Right 1/4 | Shift+Right |
Move a quarter of a screen to the right and push the new interval onto the zoom stack. |
| To Start | Home |
Move to the start of the trace file and push the new interval onto the zoom stack. |
| To End | End |
Move to the end of the trace file and push the new interval onto the zoom stack. |
| Time Interval | G | Open the Time Interval Selection dialog box. |
