Triangle_Direct

Generates a triangle with a given frequency, phase, and magnitude.

Syntax

IppStatus ippsTriangle_Direct_16s(Ipp16s* pDst, int len, Ipp16s magn, float rFreq, float asym, float* pPhase);

IppStatus ippsTriangle_Direct_16sc(Ipp16sc* pDst, int len, Ipp16s magn, float rFreq, float asym, float* pPhase);

IppStatus ippsTriangle_Direct_32f(Ipp32f* pDst, int len, float magn, float rFreq, float asym, float* pPhase);

IppStatus ippsTriangle_Direct_32fc(Ipp32fc* pDst, int len, float magn, float rFreq, float asym, float* pPhase);

IppStatus ippsTriangle_Direct_64f(Ipp64f* pDst, int len, double magn, double rFreq, double asym, double* pPhase);

IppStatus ippsTriangle_Direct_64fc(Ipp64fc* pDst, int len, double magn, double rFreq, double asym, double* pPhase);

Parameters

rFreq	Frequency of the triangle relative to the sampling frequency. It must be in range [0.0, 0.5).
pPhase	Pointer to the phase of the triangle relative to a cosine triangular analog wave. It must be in range [0.0, 2π). The returned value may be used to compute the next continuous data block.
magn	Magnitude of the triangle, that is, the maximum value attained by the wave.
asym	Asymmetry h of a triangle. It must be in range [-π , π ). If h=0, then the triangle is symmetric and a direct analog of a tone.
pDst	Pointer to the array which stores the samples.
len	Number of samples to be computed.

Description

The function ippsTriangle_Direct is declared in the ipps.h file. This function generates the triangle with the specified frequency rFreq, phase pointed by pPhase, and magnitude magn. The function computes len samples of the triangle, and stores them in the array pDst. For real triangle, x[n] is defined as:

x[n] = magn * ct_h(2π* rFreq*n + phase), n = 0, 1, 2,...

For complex triangles, x[n] is defined as:

x[n] = magn * [ct_h(2π* rFreq*n + phase) + j * st_h(2π* rFreq*n + phase)], n = 0, 1, 2,...

See Triangle Generating Functions for the definition of functions ct_h and st_h.

The example below demonstrates how to use the function ippsTriangle.

Return Values

ippStsNoErr	Indicates no error.
ippStsNullPtrErr	Indicates an error when the pDst or pPhase pointer is NULL.
ippStsSizeErr	Indicates an error when len is less than or equal to zero.
ippStsTrnglMagnErr	Indicates an error when magn is less than or equal to zero.
ippStsTrnglFreqErr	Indicates an error when rFreq is negative, or greater than or equal to 0.5.
ippStsTrnglPhaseErr	Indicates an error when the pPhase value is negative, or greater than or equal to IPP_2PI.
ippStsTrnglAsymErr	Indicates an error when asym is less than -IPP_PI, or greater than or equal to IPP_PI.

Using the Triangle Generating Functions

void func_triangle_direct()

    Ipp16s* pDst;

    int len = 512;

    Ipp16s magn = 4095;

    float rFreq = 0.02;

    float asym = 0.0;;

    float Phase = 0.0;

    IppStatus status;

    status = ippsTriangle_Direct_16s(pDst, len, magn, rFreq, asym, &Phase);

    if(ippStsNoErr != status)

      printf("IPP Error: %s",ippGetStatusString(status));

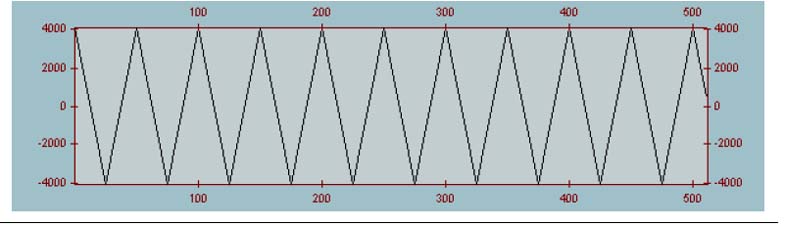

result:
