Generates a tone with a frequency, phase, and magnitude specified in the tone generator structure.
Syntax
IppStatus ippsToneQ15_16s(Ipp16s* pDst, int len, IppToneState_16s* pToneState);
Parameters
pDst |
Pointer to the array which stores the samples. |
len |
Number of samples to be computed. |
pToneState |
Pointer to the tone generator specification structure. |
Description
The function ippsToneQ15 is declared in the ipps.h file. This function generates the tone with the frequency, phase, and magnitude parameters that are specified in the previously created structure pToneState. The function computes len samples of the tone, and stores them in the array pDst. Generated values x[n] are computed using the same formulas as in the function ippsTone_Direct for computing real tones.
Example below demonstrates how to use the function ippsToneQ15.
Return Values
ippStsNoErr |
Indicates no error. |
ippStsNullPtrErr |
Indicates an error when the pDst or pToneState pointer is NULL. |
ippStsSizeErr |
Indicates an error when len is less than or equal to zero. |
Using Tone Generating Functions
void func_toneq15()
{
IppToneState_16s *TS;
Ipp16s magn = 4095;
Ipp16s rFreqQ15 = 512;
Ipp16s phaseQ15 = 0;
Ipp16s* pDst;
IppStatus status;
status = ippsToneInitAllocQ15_16s(&TS,magn,rFreqQ15,phaseQ15);
if(ippStsNoErr != status)
printf("IPP Error: %s",ippGetStatusString(status));
status = ippsToneQ15_16s(pDst,rFreqQ15,TS);
if(ippStsNoErr != status)
printf("IPP Error: %s",ippGetStatusString(status));
}

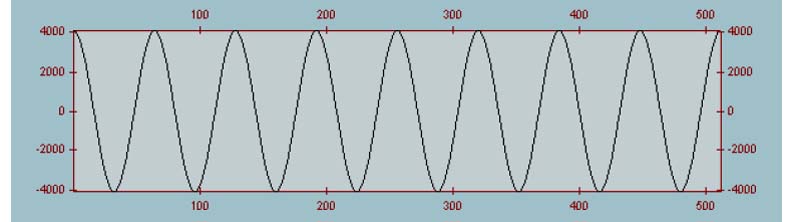

result:
