EncodeCoeffsCAVLC

Syntax

IppStatus ippiEncodeCoeffsCAVLC_H264_16s(const Ipp16s* pSrc, Ipp8u AC, const Ipp32u* pScanMatrix, Ipp8u Count, Ipp8u* Traling_One, Ipp8u* Traling_One_Signs, Ipp8u* NumOutCoeffs, Ipp8u* TotalZeros, Ipp16s* pLevels, Ipp8u* pRuns);

Parameters

pSrc	Pointer to 4x4 block - array of size 16.
AC	Flag that is equal to zero in the cases when zero coefficient should be encoded, and is equal to one otherwise.
pScanMatrix	Scan matrix for the coefficients in block (array of size 16).
Count	Position of the last non-zero block coefficient in the order of scan matrix. It should be in range [AC; 15].
Traling_One	The number of “trailing ones” transform coefficient levels in a range [0;3]. This value is calculated by the function.
Traling_One_Signs	Code that describes signs of “trailing ones”. (Trailing_One -1 - i)-bit in this code corresponds to a sign of i-“trailing one” in the current block. In this code 1 indicates negative value, 0 - positive value. This value is calculated by the function.
NumOutCoeffs	The number of non-zero coefficients in block (including “trailing ones”). This value is calculated by the function.
TotalZeros	The number of zero coefficients in block (except “trailing zeros”). This value is calculated by the function.
pLevels	Pointer to an array of size 16 that contains non-zero quantized coefficients of the current block (except “trailing ones”) in reverse scan matrix order. Elements of this array are calculated by the function.
pRuns	Pointer to an array of size 16 that contains runs before non-zero quantized coefficients (including “trailing ones”) of the current block in reverse scan matrix order (except run before the first non-zero coefficient in block, which can be calculated using TotalZeros). Elements of this array are calculated by the function.

Description

The function ippiEncodeCoeffsCAVLC_H264_16s is declared in the ippvc.h file. This function calculates some characteristics (Trailing_One, Trailing_One_Signs, NumOutCoeffs, TotalZeros, pLevels, pRuns) of a 4x4 block for CAVLC encoding. See Figure "EncodeCoeffsCAVLC_H264 Operation" for an example of the function operation:

EncodeCoeffsCAVLC_H264 Operation

Count = 13.

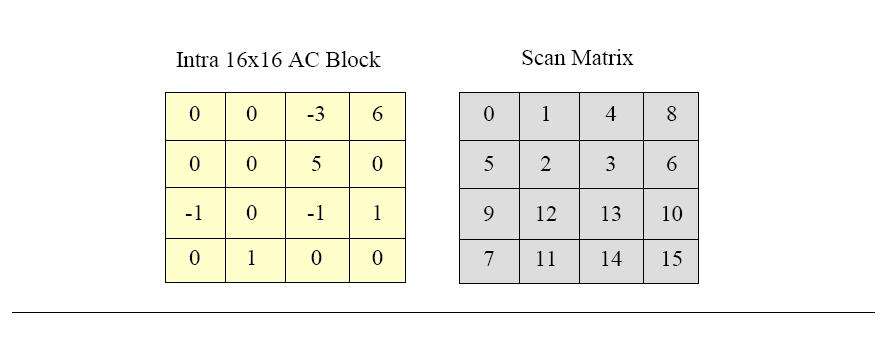

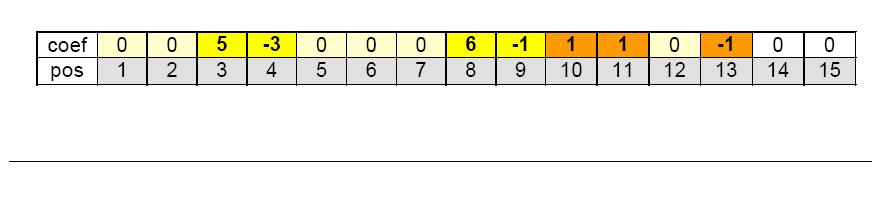

Arrangement of Block Coefficients After Scanning

Trailing_One = 3 (-1, 1, 1) Trailing_One_Signs = 00000100 NumOutCoeffs = 7 TotalZeros = 6

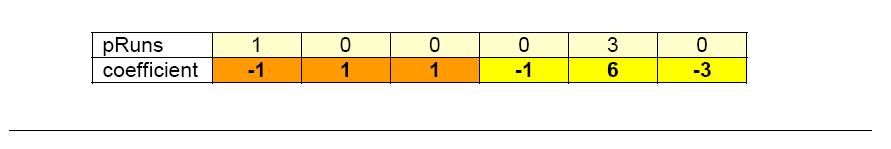

Array of Runs Before Non-Zero Coefficients (Except First) in Reverse Order

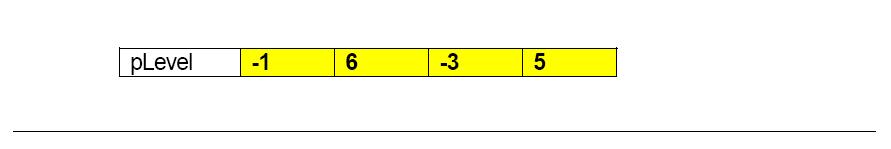

Array of Non-Zero Coefficients (Except “Trailing Ones”) in Reverse Order

This function is used in the H.264 encoder included into Intel IPP Samples. See introduction to H.264.
